Robot battery pack

24V 206Ah Battery Pack for AGV / Robot

24V 206Ah Battery Pack for AGV / Robot

Product InformationItemSpecificationBattery type7S/24V/50AhModel no.7S50Ah-PC02-AChemistryNCM/NCANominal Voltage24VNominal Ca...

Product Information


Item

Specification

Model no.

8S206Ah-PC01-A

Battery type

8S1P/24V/206Ah

Nominal Voltage

25.6V

Nominal Capacity

206Ah

Charge Voltage

29.2V

Charge Current

120A

Discharge Current

120A

Internal Resistance

≤40mΩ

Weight

50.0Kg±3.0Kg

Size

L750mm*W160mm*H400mm

BMS

include BMS

BMS Protection

Short-circuit   protection, over-charge protection, over-discharge protection, over-current   protection, temperature protection and keep the battery power balance.

Communication

RS485&RS232

Product Advantages

1. Brand guarantee:Use power type high rate brand cell

2. Long life cycle: >1500 Times

3. System safety: Equipped with intelligent BMS to monitor battery status and

Application Area

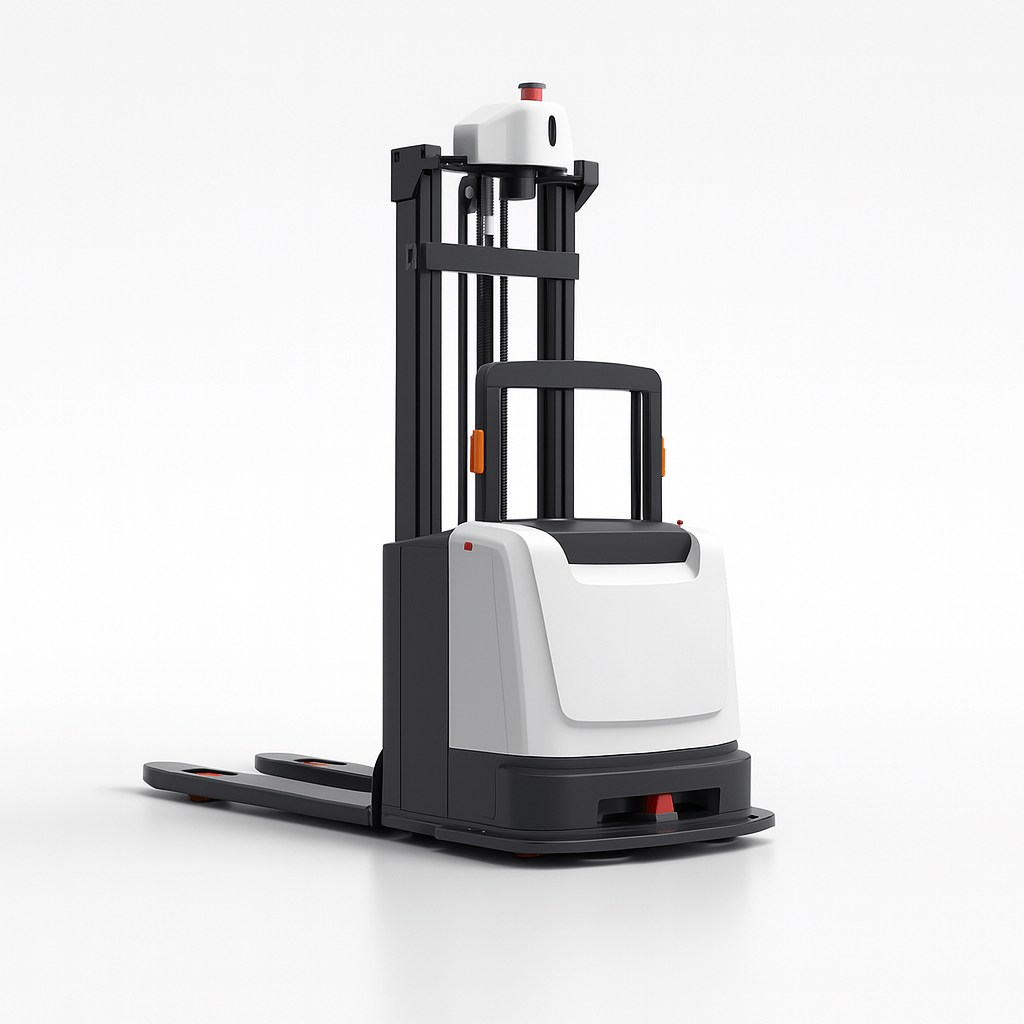

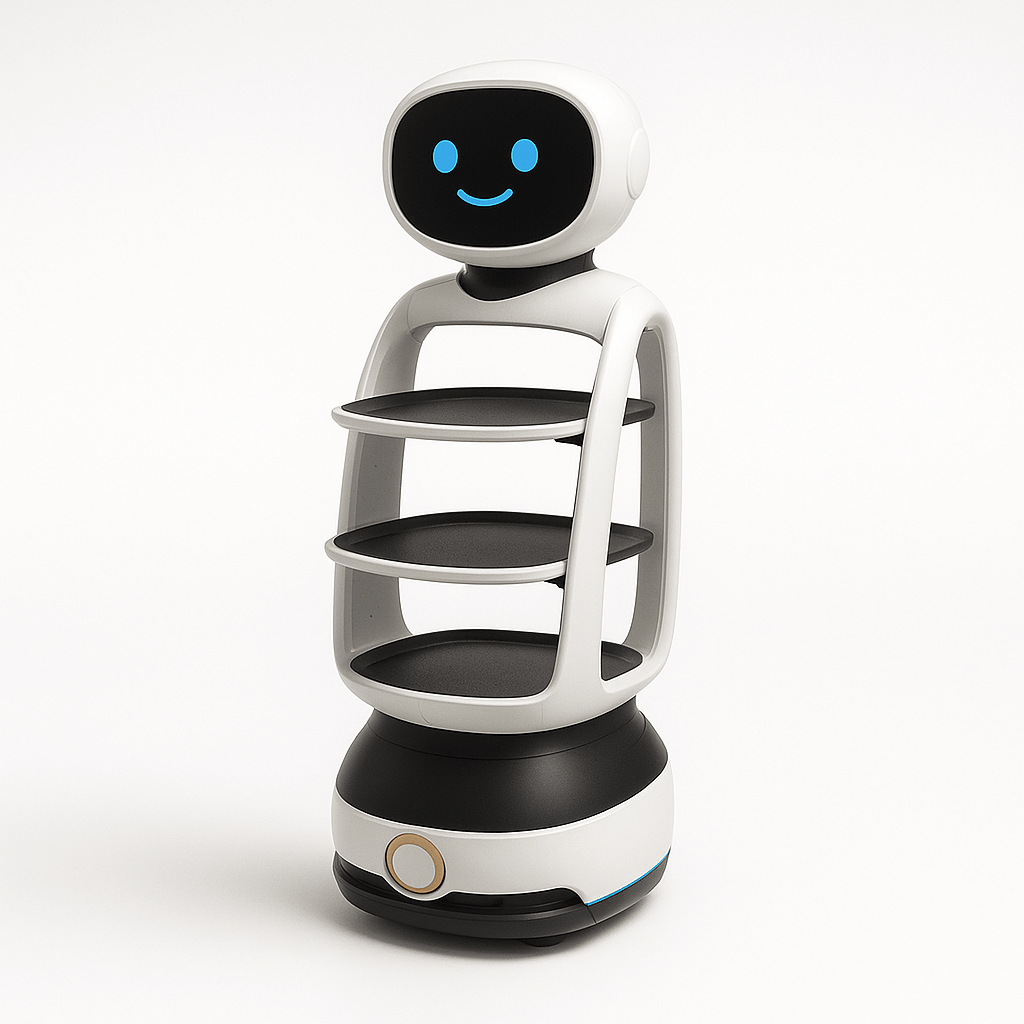

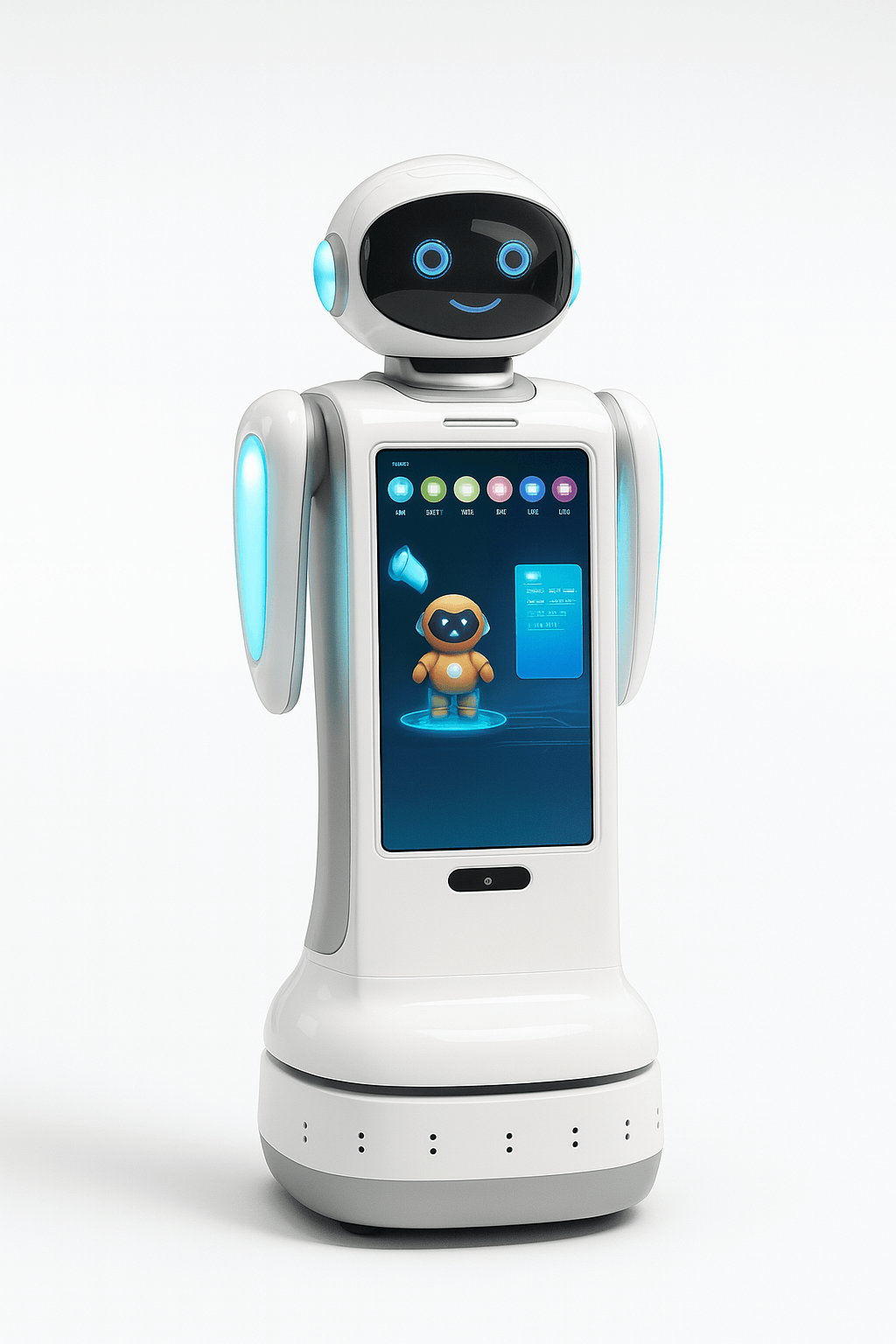

24V 50Ah Battery Pack for AGV / Robot(图1)   24V 50Ah Battery Pack for AGV / Robot(图2)   24V 50Ah Battery Pack for AGV / Robot(图3)

                    Patrol robot                                                                 Delivery robot                                                   Service robot
